AEM 30-0300 X-Series Wideband Gauge 52mm 2 1/16 UEGO AFR Air Fuel O2 Controller

AEM's X-Series Wideband Air/Fuel Ratio Sensor Controllers are built upon unique, patented X-Digital technology (Patent 9,575,030), making them the fastest responding wideband air/fuel ratio controllers in independent testing*.

 AEM co-developed its new wideband sensor with global automotive supplier FAE, culminating in a new design that has a faster response time and is less prone to failure in high performance vehicles.

 It can be used on EFI or carbureted applications, and in fuel systems using gasoline (including leaded race gas), methanol, ethanol, diesel, propane, and CNG.

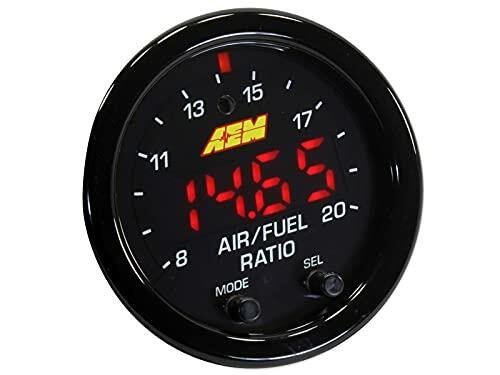

The X-Series Wideband AFR Gauge (PN AEM 30-0300) mounting surface measures 2 1/16th-inch (52mm) in diameter and features a modern center display that is 87% larger than the 30-4110 AEM Wideband Gauge's center display.

Its slim depth (less than one inch overall) dramatically increases its application base and potential mounting locations.

The AEM Wideband X-Series AFR Gauge has a user configurable display via buttons on the gauge face that allows you to change between AFR, Lambda, or O2%, change the center display to three or four digits, perform a free-air calibration if desired, and change the CAN message ID when linking multiple X-Series Wideband Controllers.

 X-Digital wideband technology gives these controllers the ability to read and report values that other controllers do not, which can deliver more optimized engine tuning and a safer overall operating condition.

The controller's high-speed digital implementation ensures no loss of signal fidelity and full transient response, making it able to identify the slightest fluctuations in AFR and output them in full value.

FEATURES

• X-Series Wideband UEGO AFR Controller Gauges were the fastest responding wideband air/fuel ratio controllers in an independent test vs. 17 competitor wideband AFR controllers
• Patented X-Digital wideband technology (Patent 9,575,030)
• Factory calibrated resistor does not require free-air calibration, but can be free-air calibrated
• Auto-Sensor Detection between AEM FAE and Bosch LSU 4.9 wideband sensors
• Compatible with supply voltages up to 16V
• 0-5V & RS232 output for data logging and feedback control, AEMnet (CANbus) for data logging and daisy-chaining multiple controllers up to 16 cylinders

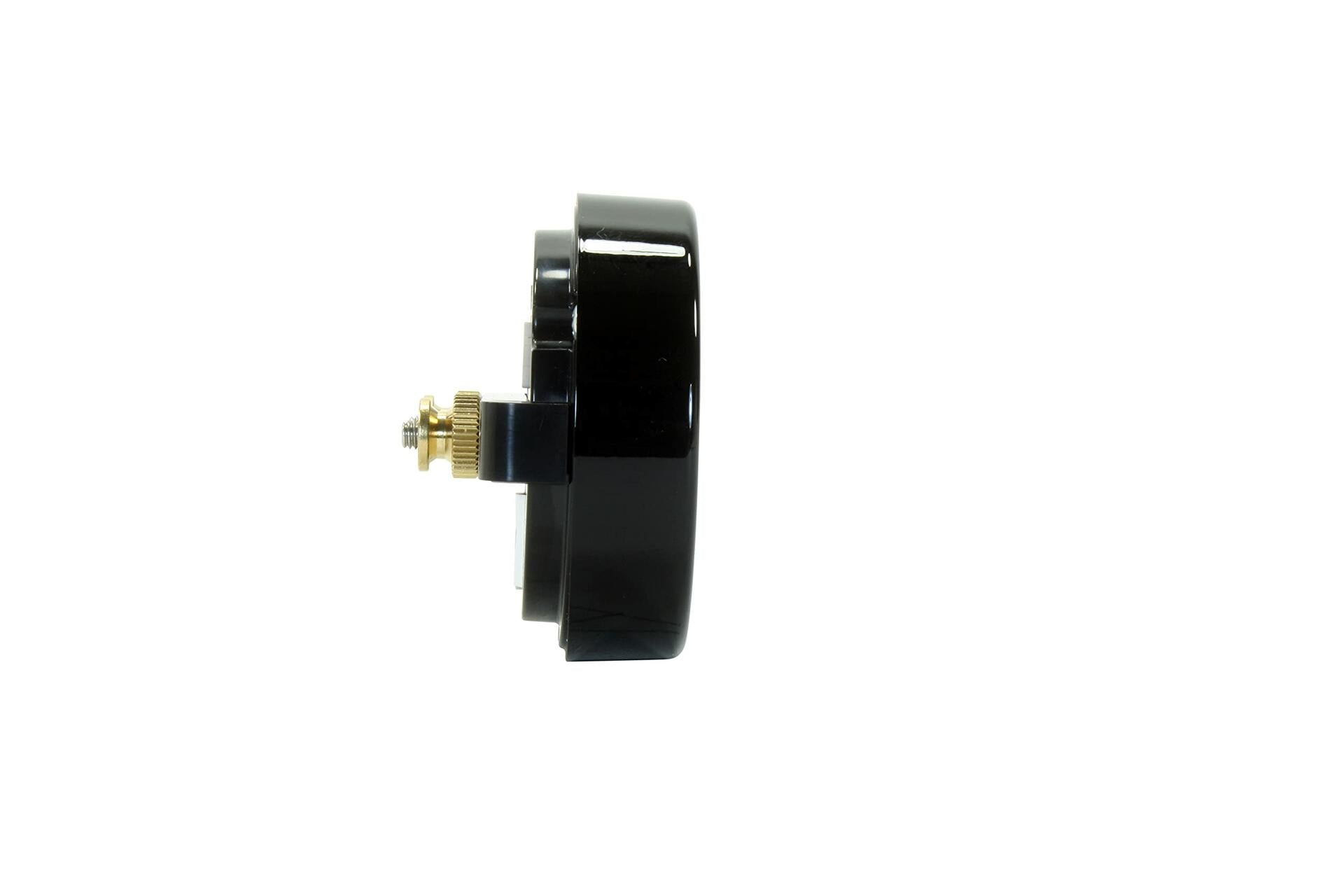

• 52mm gauge diameter and slim 0.825" gauge depth(Gauge cup depth only .200" deep)
• Auto-dimming feature
• User-configurable display for changing between AFR, Lambda, and O2%, and 3- or 4-digit display
• Black bezel and black double-sided faceplate included (silver bezel/white faceplate option sold separately, PN 30-0300-ACC)
