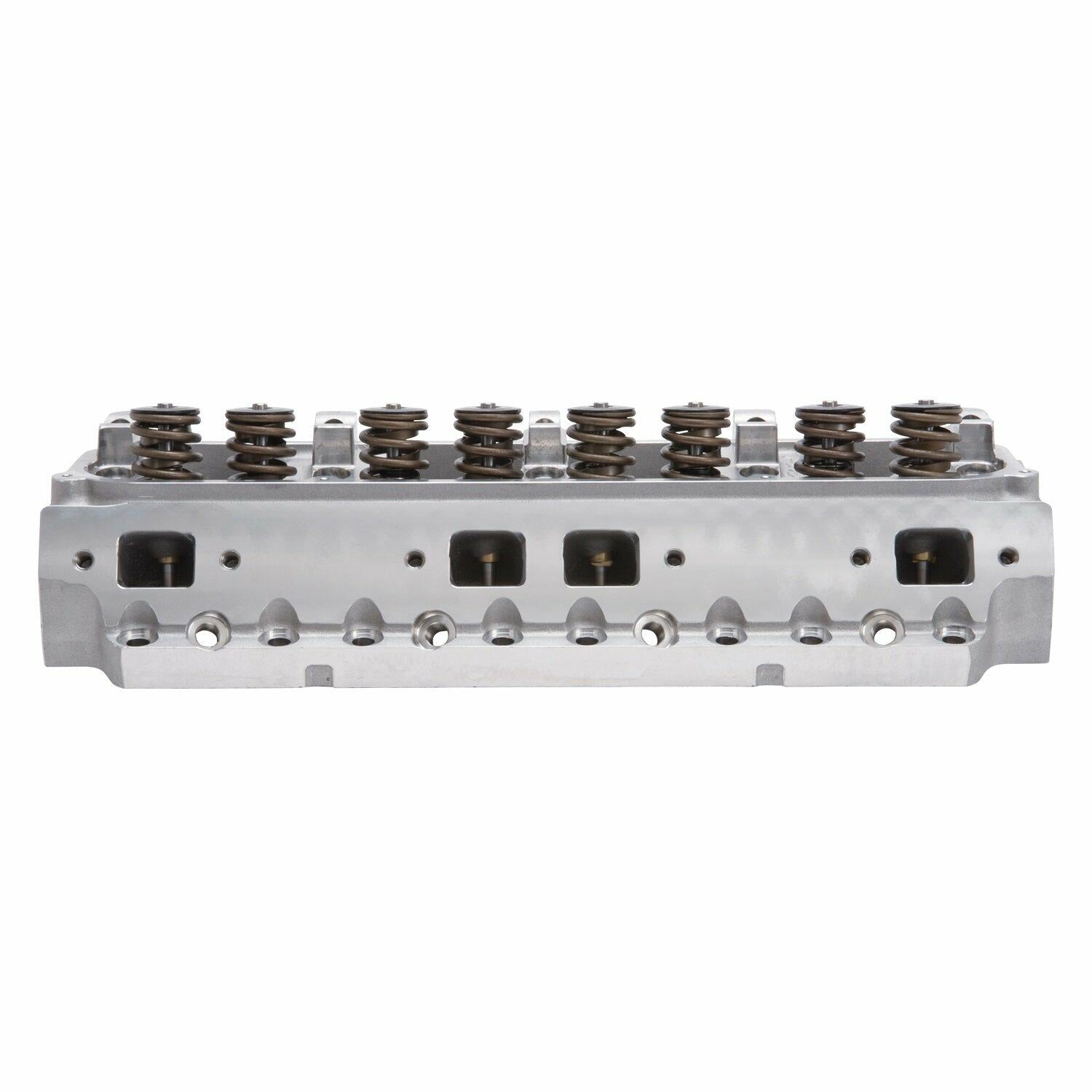

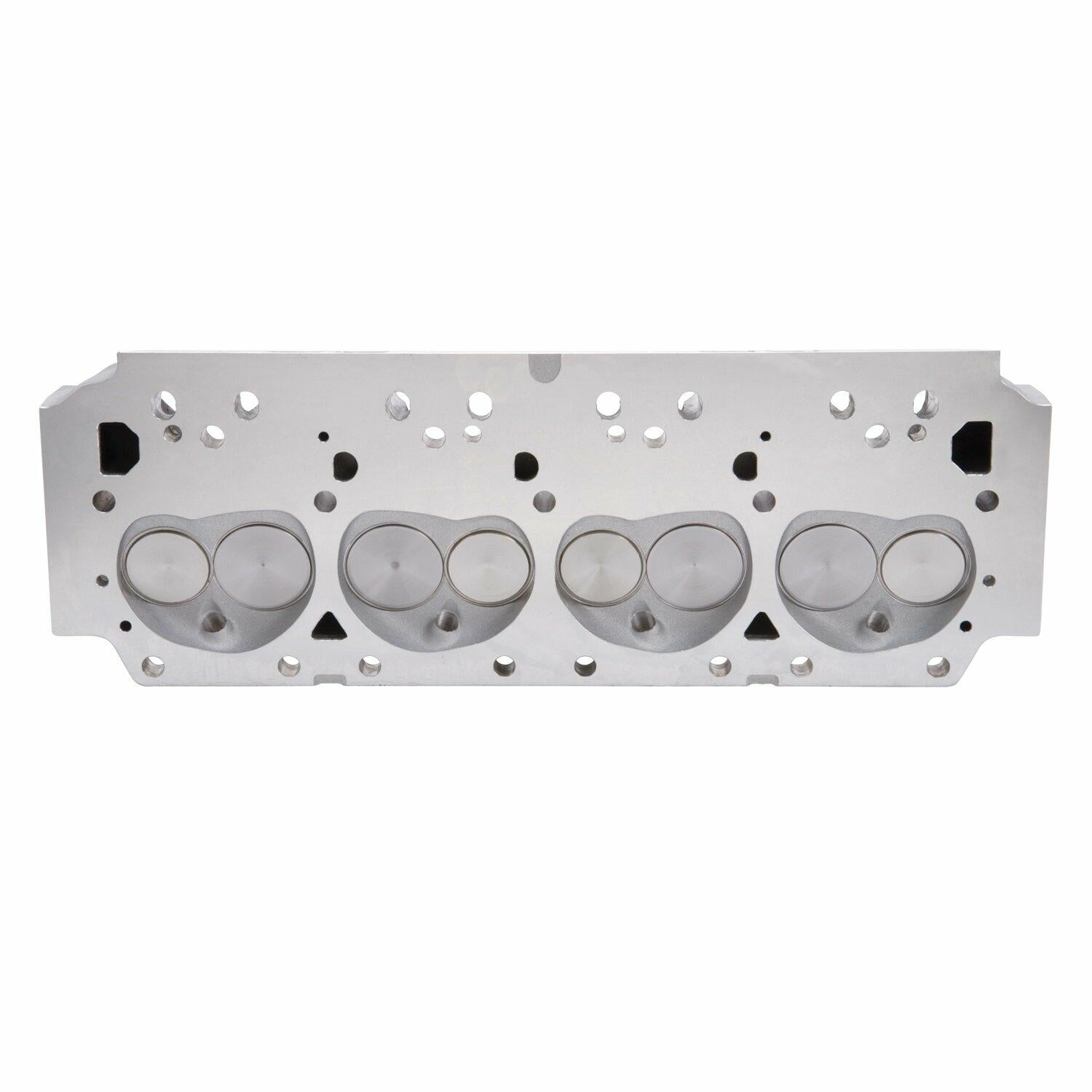

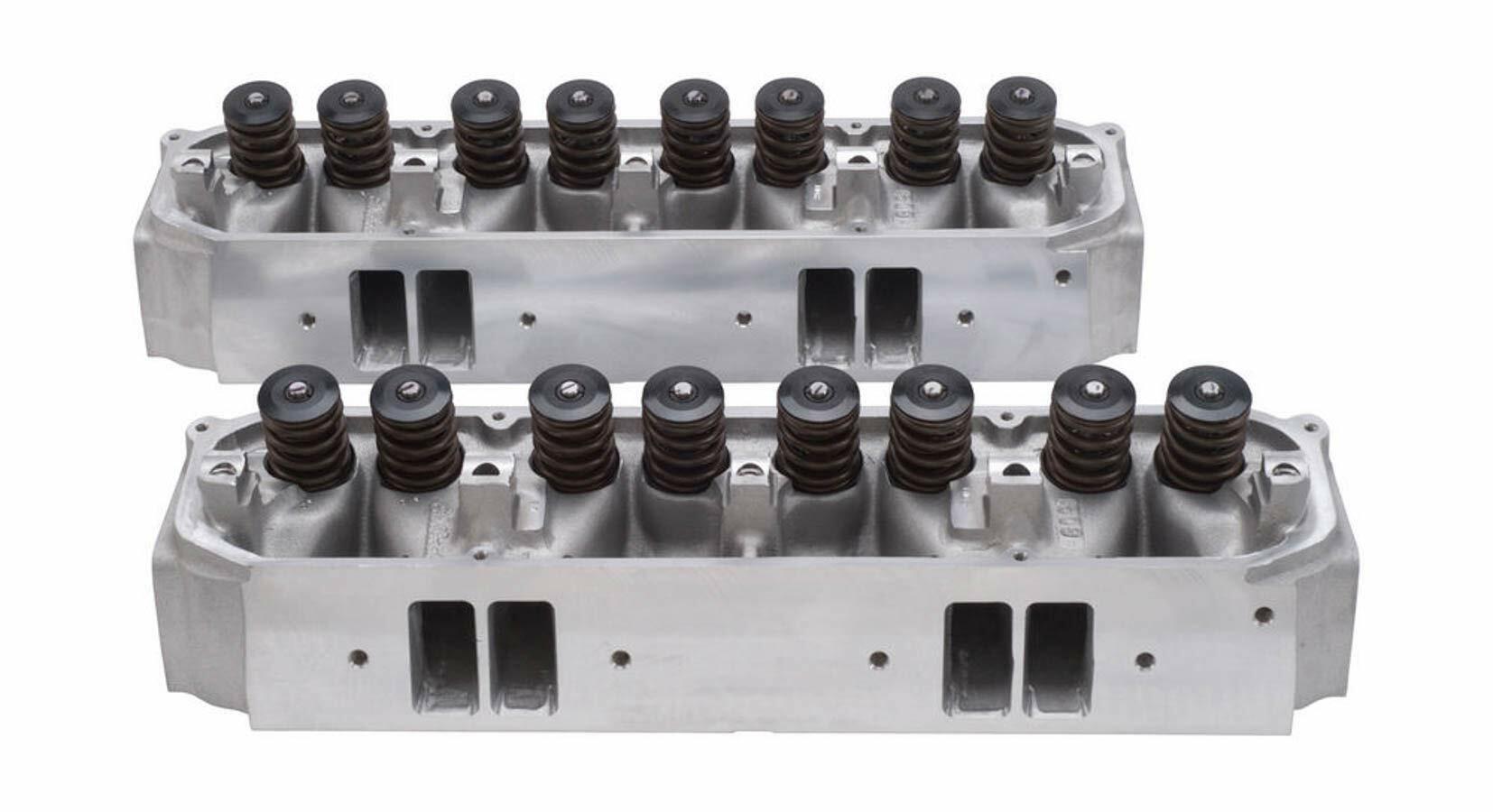

Edelbrock E-Street 5090 Cylinder Heads Pair 75cc Big Block Chrysler Mopar 440

Cylinder Head Specifications:

Combustion chamber volume: 75cc

Intake runner volume: 210cc

Exhaust runner volume: 70cc

Intake valve diameter: 2. 140"

Exhaust valve diameter: 1. 81"

Valve stem diameter: 11/32"

Valve guides: Manganese bronze

Deck thickness: 5/8"

Valve spring diameter: 1. 55"

Valve spring maximum lift: . 600"

Pushrod diameter: 3/8"

Valve angle: 15°

Exhaust port location

Stock; Spark plug fitment: 14mm x 3/4 reach, gasket seat

FEATURES

• Complete Pair For Hydraulic Flat Tappet
• 75cc Combustion Chamber Volume
• 210cc Intake/70cc Exhaust Runner Volume
• 2. 14 in. Intake/1. 81 in. Exhaust Valve Diameter
• 0. 625 in. Deck Thickness
